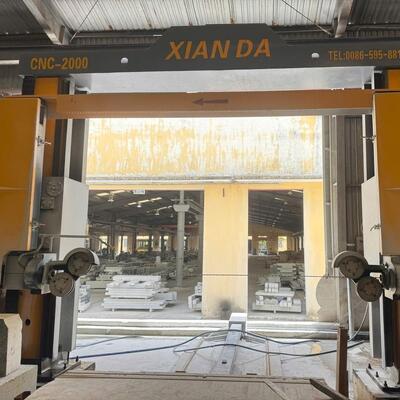

Xianda CNC Diamond Wire Saw Machine
Professional CNC diamond wire saw machine with engine motor gear, CE certified 380V/50Hz 11KW 6000kg capacity for precision stone cutting applications.
Product Overview
Technical Specifications
| Power | 11KW |
| Max Cutting Thickness | Custom |
| Place of Origin | Fujian, China |
| Weight | 6000kg |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Motor, Gear, Engine, Pump, Gearbox, Bearing |
| Primary Use | Granite |
| Voltage | 380V/50Hz |
| Brand Name | Xianda |
| Dimensions (L*W*H) | 8800mm * 6300mm * 3800mm |
| Key Selling Points | High-Accuracy |
| Max Processing Size | 3000 * 3000 * 1500mm |
| Management Certification | ISO9001 CE |
Model Comparison
| Parameter |
Unit |
CNC-2000 |
CNC-2500 |
CNC-3000 |
| Max Processing Size |
mm |
2000*3000*1500 |
2500*3000*1500 |
3000*3000*1500 |
| Wheel Diameter |
mm |
1600 |
1600 |
1600 |
| Trolley Size |
mm |
1300*2500 |
1300*2500 |
1300*2500 |
| Table Bearing Weight |
T |
15 |
15 |
15 |
| Main Motor |
kw |
11 |
11 |
11 |
| Wire Speed |
m/s |
20-40 |
20-40 |
20-40 |
| Outline Dimension |
mm |
6800*6300*3800 |
7800*6300*3800 |
8800*6300*3800 |
| Gross Weight |
kg |
≈5500 |
≈5750 |
≈6000 |
| Water Consumption |
m³/h |
≈3 |
≈3 |
≈3 |
Quality Assurance
Machinery Test Report: Provided
Video Outgoing Inspection: Provided
After-sales Service: Engineers available to service machinery overseas
Certifications
Company Exhibition
Our Team
Frequently Asked Questions
Who are we?
We are based in Fujian, China, established in 2002. We serve customers worldwide including Mid East (25%), Eastern Europe (25%), Africa (15%), Southern Europe (10%), North America (10%), Domestic Market (10%), and South America (5%). Our team consists of 51-100 professionals.
How can we guarantee quality?
We provide pre-production samples before mass production and conduct final inspection before shipment to ensure consistent quality standards.
What can you buy from us?
Diamond Wire Saw Machines, Column Processing Machines, Profiling Machines, Bridge Type Cutting Machines, and Carving Machines.
Why should you buy from us instead of other suppliers?
- Since 1985, we have served happy customers from 57 countries
- Complete Product Range for all stone processing needs
- Field Service Technicians available for support
- All machines include one-year guarantee for parts
- We provide More Than Machinery - comprehensive solutions
What services can we provide?
Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
