Zdqj-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite / Marble

1
MOQ
To Be Negotiable
preço
Zdqj-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite / Marble
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Garantia: 1 ano, um ano, 12 meses, 18 meses, 2 anos
Serviço pós-venda prestado: Engenheiros disponíveis para serviços de máquinas no estrangeiro, Apoio online, Apoio técnico por ví
Peso: 1-5 toneladas,1000 kg,62/65 kg,600 kg,320 kg
Doença: Novo
Dimensão (l*w*h): 6000*1400*1550MM,3500*4000*2500mm,3250x3450x900mm,2200*2200*1700,775*270*460mm
Tensão: 380V,380V/50HZ,230V/380V,220V,facultativo
Uso: Carpintaria, serra de corte de madeira, corte de madeira, serra de corte, corte de metal
Estilo: Horizontal, Outros, Vertical
Usar: Fabricação de madeira, granito e mármore
Nome do produto: Máquina automática de corte de madeira, Máquina automática de corte de alta velocidade, Máquina de c
Tipo: Serra de Banda, SF606, totalmente automática, serra de corte, Serra de Painel de Mesa
Aplicativo: Máquina de corte de madeira, fábrica de madeira, Máquina de corte de pedra de mármore de granito, pr
Poder nominal: 15kw
Nome: Máquina de corte de madeira, Máquina automática de corte de madeira, Máquina automática de corte de
Cor: Azul, Desenhado pelo cliente, Personalizável, Azul ou personalizado, Amarelo
Diâmetro da lâmina da serra: 300mm(250mm-350mm),450mm,600mm
Palavra -chave: Serra de corte de alta velocidade, Máquina de corte horizontal de serras de banda de metal, Máquina
Destacar:

Granite Stone Bridge Saw Cutting Machine

,

Automatic Stone Bridge Saw Cutting Machine

,

Infrared Bridge Saw Cutting Machine
Informação básica
Lugar de origem: Jinjiang, Fujian, China
Marca: Xianda Machinery
Certificação: CCC, SONCAP, GOST, ISO, CE
Número do modelo: ZDQJ-450
Condições de Pagamento e Envio
Tempo de entrega: 30 dias
Termos de pagamento: L/C, D/A, T/T, D/P, Western Union
Habilidade da fonte: 1000 conjuntos/ano
Descrição de produto
ZDQJ-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite/Marble
Basic Information
Model NO.: ZDQJ-450/600/800
Application: Construction, Stone Industry
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Control: PLC
Certification: CCC, SONCAP, GOST, ISO, CE
Blade Diameter: Φ300-Φ450
Max Processing Size: 3200*2000*120mm
Dimension of Worktable: 3200*2000mm
Workable Tilting Degree: 0-85°
Worktable Rotation Degree(Optional): 0-90° / 0-360°
Main Motor: 15kw
Gross Motor: 21kw
Water Consumption: 4m3/H
Outline Dimension: 6000*4800*2900mm
Gross Weight: 5250kg
Transport Package: Load in a 20 Feet Container
Specification: 6000*4800*2900mm
Trademark: Xianda
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Production Capacity: 1000 Sets/Year
Zdqj-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite / Marble 0 Zdqj-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite / Marble 1
Product Description

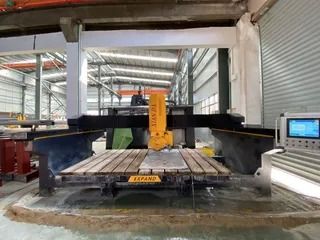

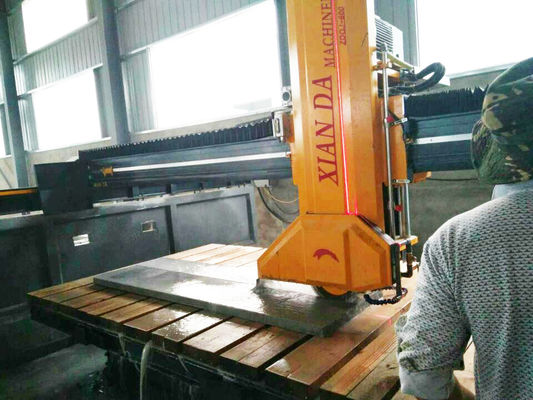

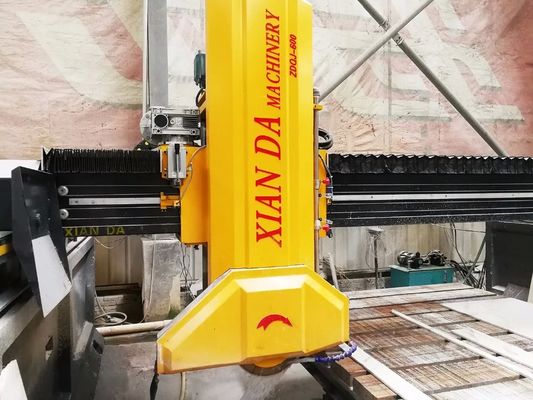

The ZDQJ-450 infrared automatic stone bridge cutting machine comes in three types, featuring PLC system and Human-machine interface. It incorporates ultra-high precision rotary encoder positioning and infrared device, with Chinese & English dual operation language. The machine uses inverter to control left-right feeding, adjusting speed according to stone material, and features hydraulic lifting system equipped through 4 guide posts with unique side beam protection device. Main spare parts utilize imported high-quality materials.
This machine is characterized by high cutting efficiency, precision cutting, excellent stability, and easy operation, making it particularly suitable for high-value granite and large-size marble processing.
Technical Parameters
Parameter Unit ZDQJ-450 ZDQJ-600 ZDQJ-700
Blade diameter mm 300-450 350-600 350-700
Max processing size mm 3200*2000*120 3200*2000*180 3200*2000*230
Dimension of worktable mm 3200*2000 3200*2000 3200*2000
Worktable tilting degree ° 0-85° 0-85° 0-85°
Worktable rotation degree ° 0-90°/0-360° 0-90°/0-360° 0-90°/0-360°
Main motor kw 15 18.5 18.5
Gross motor kw 21 24 24
Water consumption m³/h 4 4 4
Outline dimension mm 6000*4800*2900 6000*4800*3100 6000*4800*3200
Gross weight kg 5250 5500 5750
Xianda Machinery
Zdqj-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite / Marble 2
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and has been dedicated to the development and production of a series of column making machines, wire saw stone cutting machines, block trimming machines, bridge saw cutting machines, and profiling stone cutting machines.
With the company's rapid development, we have passed ISO9001 verification, CE certification, and won many honorary titles including the International Gold Plant Quality Award. We maintain "Advanced Technology and High Quality" as our aim and have developed a range of 'Xianda' Brand special stone shape processing machines.
Exhibition
Zdqj-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite / Marble 3
Our Service
  • Training for machine installation and operation
  • Engineers available for overseas machinery service
  • 24-hour online after-sales service
For any inquiries or support, please contact our sales department or customer service department at any time.
