Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine with 350-600mm Blade Diameter and 15*2/18.5*2kw Main Motor

1
MOQ
To Be Negotiable
preço
Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine with 350-600mm Blade Diameter and 15*2/18.5*2kw Main Motor
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Controlar: CNC
Fonte de energia: Elétrico
Ponta: Suave
Uso: Corte/Fresamento/Perfilamento
Consumo de água: ³ /h de 8m
Peso bruto: 5000KGS
Motor principal: 15*2/18,5*2kw(Opcional)
Dimensão da Lâmina: 350-600mm
Destacar:

Bridge-Type Stone Milling Machine

,

Four-Blade Stone Cutting Milling Machine

,

Dual-Beam Stone Cutting Milling Machine
Informação básica
Lugar de origem: Jinjiang, Fujian, China
Marca: Xianda Machinery
Certificação: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Número do modelo: BLMM-1800-2D
Condições de Pagamento e Envio
Detalhes da embalagem: Amarração de cabo de aço, adequada para transporte marítimo/aéreo/terrestre/ferroviário.
Tempo de entrega: 15 dias
Termos de pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte: 1000 conjuntos/ano
Descrição de produto

BLMM-1800MAX-2D | Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine

Heavy-Duty 3-Axis CNC Processor for Linear, Square Baluster & Special Kerbstone – One-Piece Minimum Order

1. Machine Overview

The BLMM-1800MAX-2D is a bridge-type, four-blade, dual-beam CNC stone-cutting and milling centre engineered for high-efficiency, high-accuracy, high-stability production of:
  • Linear stone pieces
  • Square balusters
  • Special-shaped kerbstones
One-pass sequence: rough cut → fine cut → finish mill with 3-axis CNC control and zero-backlash linear-guide + ball-screw motion.

2. Technical Specifications

Parameter Unit BLMM-1800 BLMM-1800-2D
Blade diameter mm 350-600 350-600
Max lifting travel of cutting frame mm 450 450
Worktable Size mm 1800*3500 1800*3500*2PC
Max processing length mm 3500 3500
Main motor kw 15/18.5 (Optional) 15*2/18.5 *2(Optional)
Gross motor kw 21/24.5 (Optional) 40/47 (Optional)
Outline dimension mm 5300*3950*2550 5800*5300*2550
Water Consumption m³/h 6 6

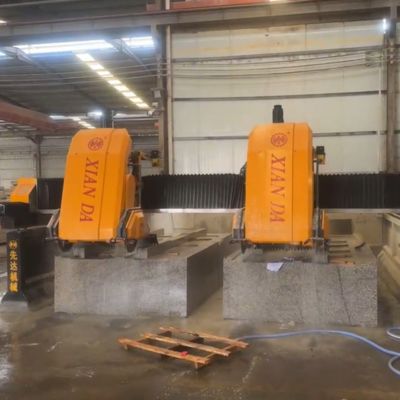

Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine with 350-600mm Blade Diameter and 15*2/18.5*2kw Main Motor 0

Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine with 350-600mm Blade Diameter and 15*2/18.5*2kw Main Motor 1

Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine with 350-600mm Blade Diameter and 15*2/18.5*2kw Main Motor 2

Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine with 350-600mm Blade Diameter and 15*2/18.5*2kw Main Motor 3

Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine with 350-600mm Blade Diameter and 15*2/18.5*2kw Main Motor 4

Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine with 350-600mm Blade Diameter and 15*2/18.5*2kw Main Motor 5

2. Key Equipment Features
3-Axis CNC Control
4-Blade Bridge Array
Guide-Pillar + Copper-Bush Lifting
Linear-Guide + Ball-Screw Feed
Heavy Bridge Frame
High-Stroke Z-Axis

CNC System & Software

  • Controller: CNC 3-axis
  • Screen: 15″ touch
  • Programming:
    • Import .dxf, .stp
    • Parametric kerb & baluster wizard
    • Teach-in for one-off artistic shapes
  • Functions: tool-life monitor, collision guard, remote VPN diagnostics

Package, Delivery & Warranty

  • Package: Steel-frame + plywood crate, export standard
  • Delivery: 25–30 days (standard), 35 days (custom)
  • Installation: 3-day on-site commissioning + operator training
  • Support: 24/7 hotline, global spare-parts hub


 Customer Success Cases

“Four-blade layout doubled our kerbstone output while cutting labour by half. ROI in 14 months.”
— Eastern European Road-Stone Supplier
